T35

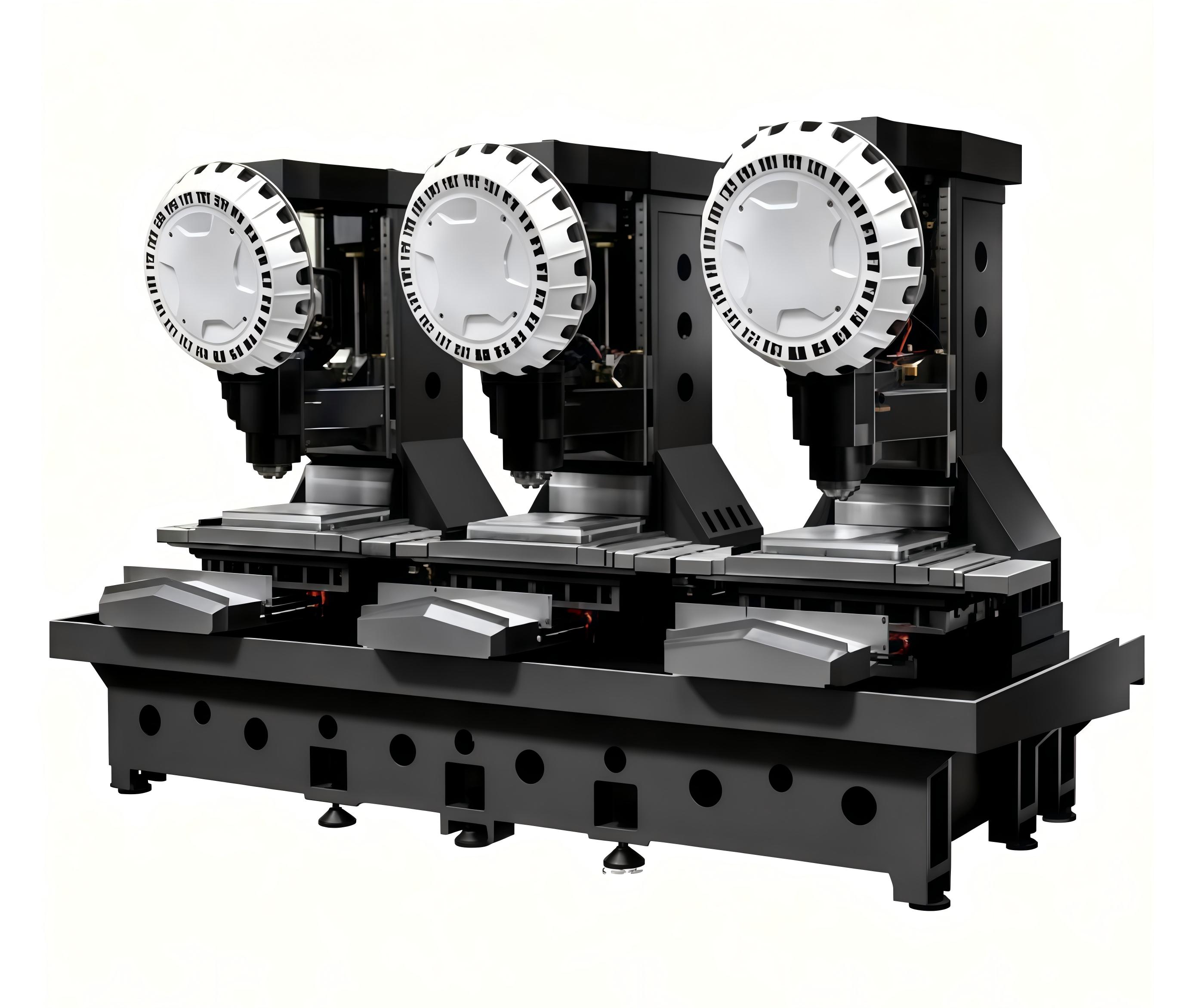

The T35 is a three‑spindle drilling and tapping center from SinoAxis, designed for high‑volume standard part production. With three independently controlled spindles, it can machine three parts simultaneously or run multiple operations on the same part in parallel. Output approaches that of three single‑spindle machines, while equipment cost and floor space remain far below three separate units. Built for high‑volume runs of 3C structural components, automotive parts, and hardware products – helping customers lower per‑part cost and scale production without scaling floor space.
- Product ID
- #2556
- Category
- Drilling and Tapping Center
Description
One Machine, Triple the Output
The T35 three‑spindle drilling and tapping center is purpose‑built for high‑volume batch production. Each of its three spindles operates independently – machining three parts at the same time, or working simultaneously on different features of the same part. A single setup with parallel processing significantly reduces cycle times.
The Balance Between Efficiency and Space
Three separate machines mean three times the cost, three times the floor space, and three times the maintenance workload. The T35 delivers an output approaching that of three single‑spindle machines – at the cost of a single machine. Its compact footprint occupies roughly the space of two standard units, maximizing the value of your limited shop floor.
Precision Without Compromise
Every T35 is verified by laser interferometer before shipment, with a positioning accuracy of 5μm. All three spindles maintain consistent machining precision, ensuring dimensional stability across high‑volume runs – and eliminating rework in downstream processes caused by tolerance issues.
Key Applications
High‑volume 3C structural components
Batch production of automotive parts
Mass production of hardware standard parts
Mixed‑line production with high volumes and multiple part types
Parameters & Technical Features
| Item | Parameter | Unit |
|---|---|---|
| Table | ||
| Table Size | 450 × 400 | mm |
| Max. Table Load | 350 | kg |
| T‑Slot Size | 3 × 14 × 100 | mm |
| Travel Range | ||
| X‑Axis Travel | 350 | mm |
| Y‑Axis Travel | 400 | mm |
| Z‑Axis Travel | 350 | mm |
| Spindle Nose to Table Surface | 125 - 475 | mm |
| Spindle Center to Column | 445 | mm |
| Spindle | ||
| Spindle Type | Direct‑Drive | -- |
| Spindle Taper | BT30 | -- |
| Spindle Speed | 20000 | rpm |
| Feed | ||
| Cutting Feed Rate | 5 - 10000 | mm/min |
| X‑Axis Rapid Traverse | 48 | m/min |
| Y‑Axis Rapid Traverse | 48 | m/min |
| Z‑Axis Rapid Traverse | 48 | m/min |
| Tool Magazine (Optional) | ||
| Tool Magazine Capacity | 21 | pcs |
| Max. Tool Diameter(Adjacent Empty) | 60 (80) | mm |
| Max. Tool Length | 200 | mm |
| Max. Tool Weight | 3 | kg |
| Tool Change Time | 1.8 | sec |
| Accuracy | ||
| Positioning Accuracy (X/Y/Z) | ±0.005 / 300 | mm |
| Repeatability (X/Y/Z) | ±0.003 / 300 | mm |
| Air Supply Requirement | ||
| Required Air Pressure | 6 - 7 | kgf/cm² |
| Required Air Flow | 0.15 | m³/min |
| Weight | ||
| Machine Weight (Excluding Sheet Metal) | 5800 | kg |
